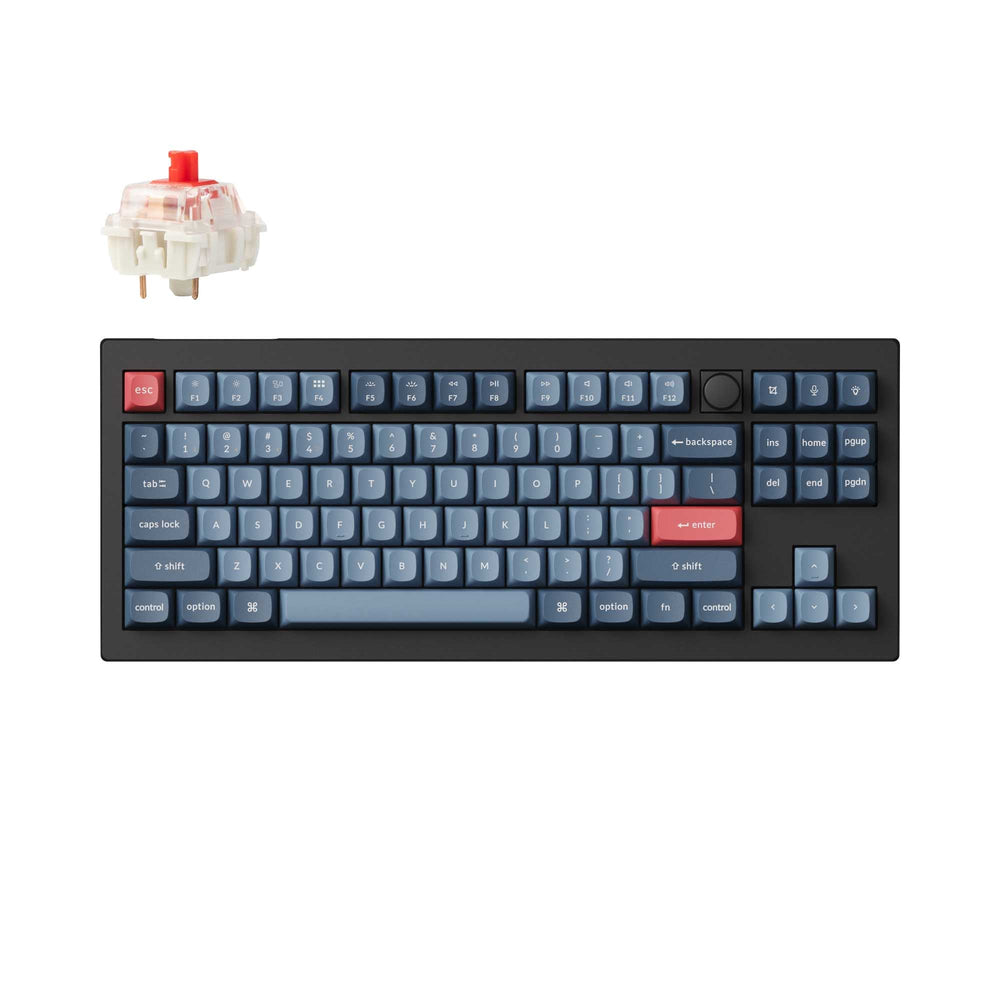

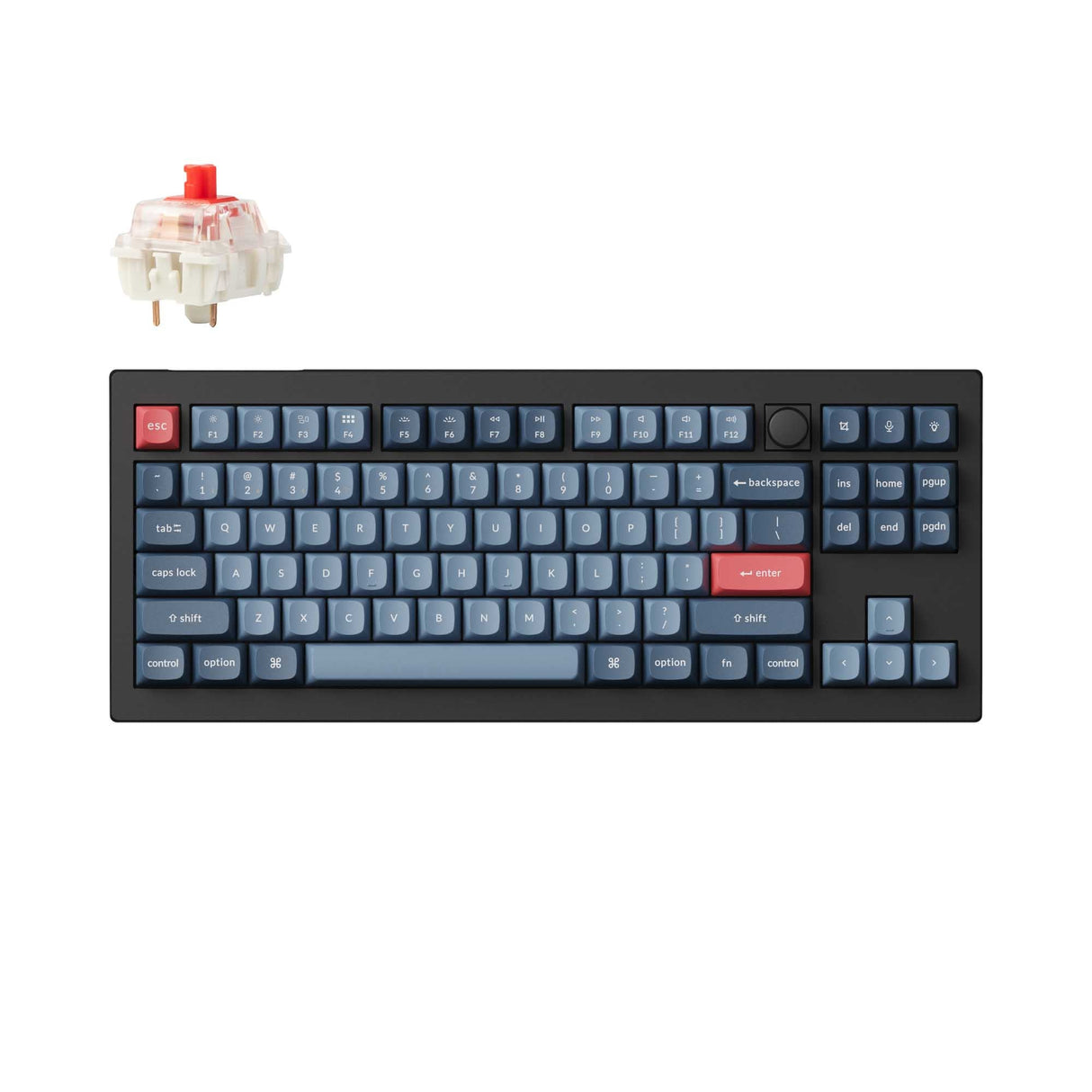

Keychron V3 Max QMK/VIA Wireless Custom Mechanical Keyboard 80% Layout Fully Assembled Knob for Mac Windows Linux Gateron Jupiter Red

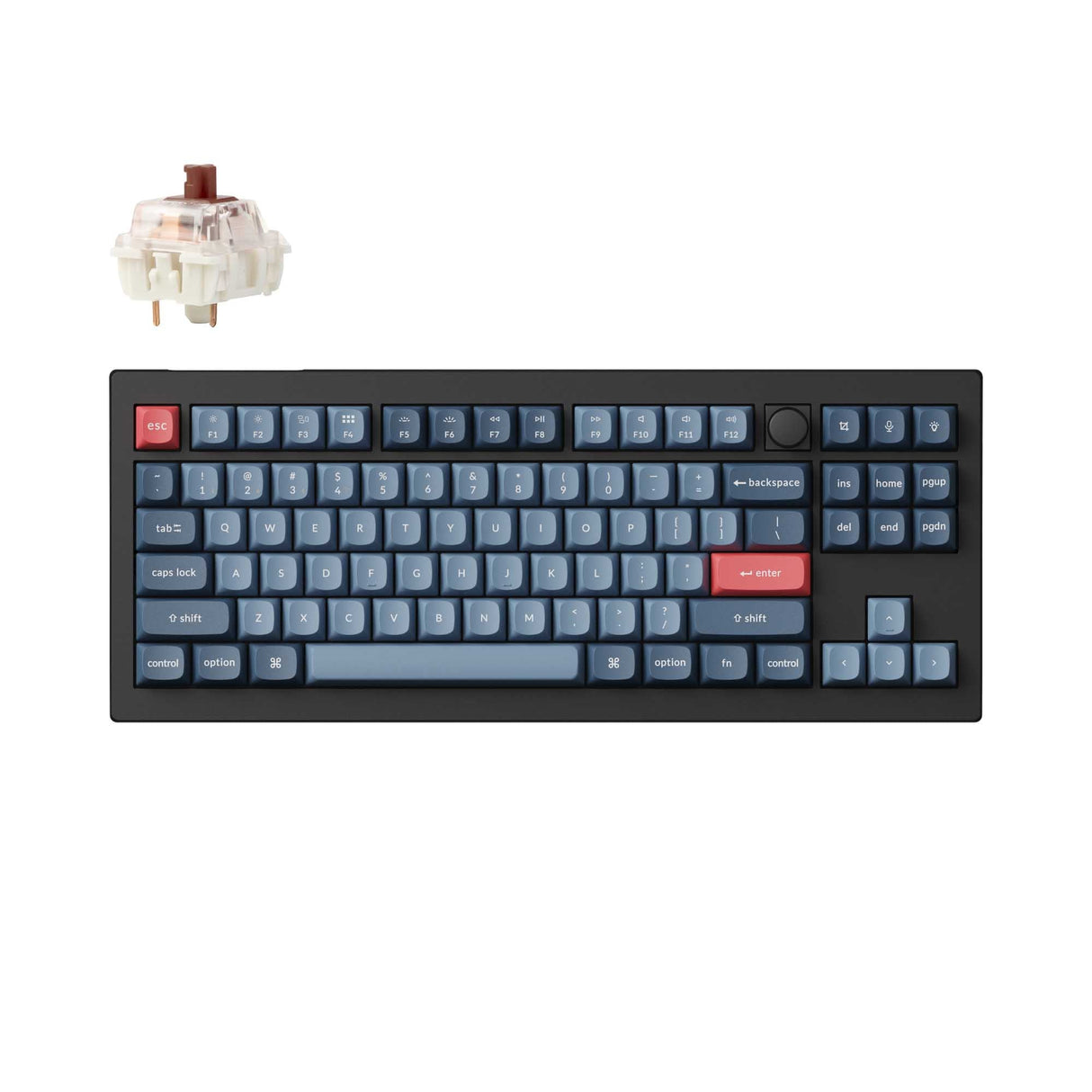

Keychron V3 Max QMK/VIA Wireless Custom Mechanical Keyboard 80% Layout Fully Assembled Knob for Mac Windows Linux Gateron Jupiter Brown

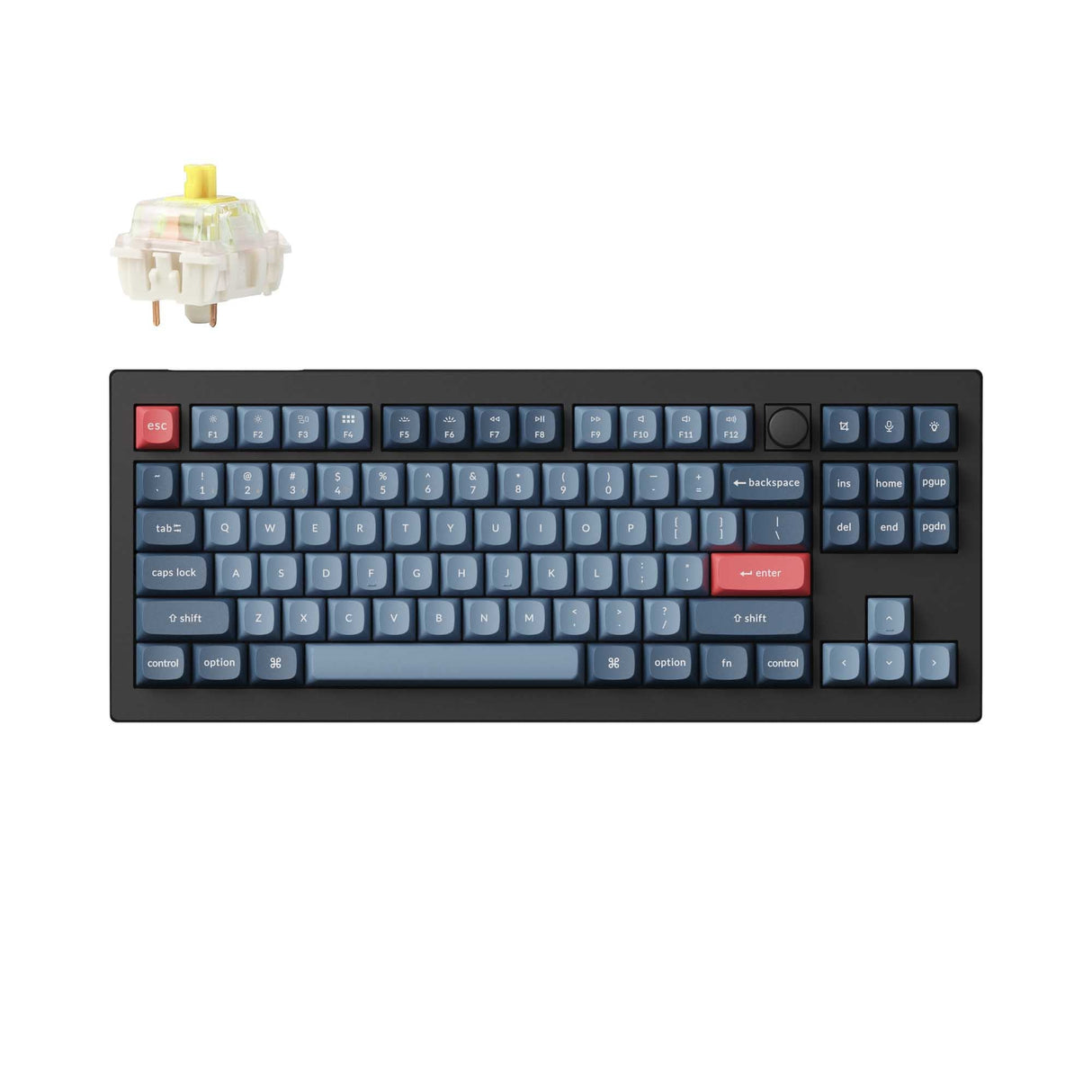

Keychron V3 Max QMK/VIA Wireless Custom Mechanical Keyboard 80% Layout Fully Assembled Knob for Mac Windows Linux Gateron Jupiter Banana

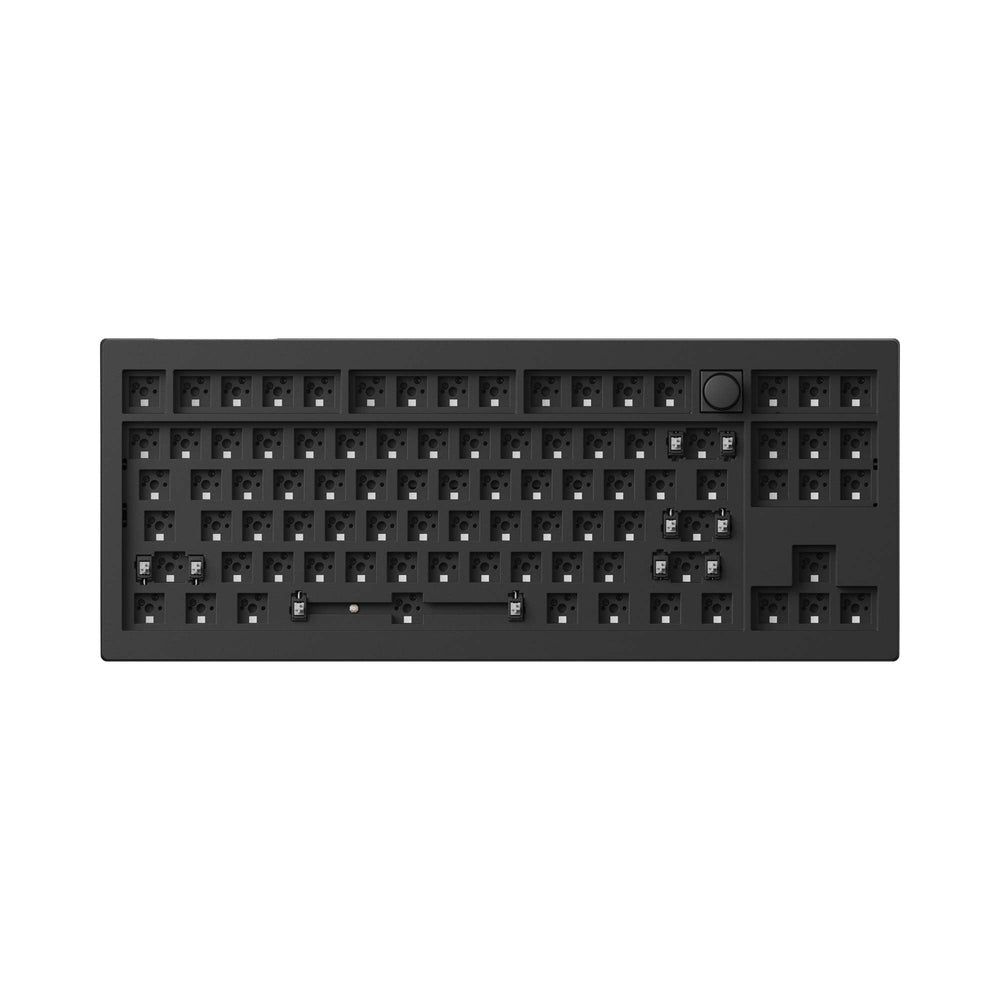

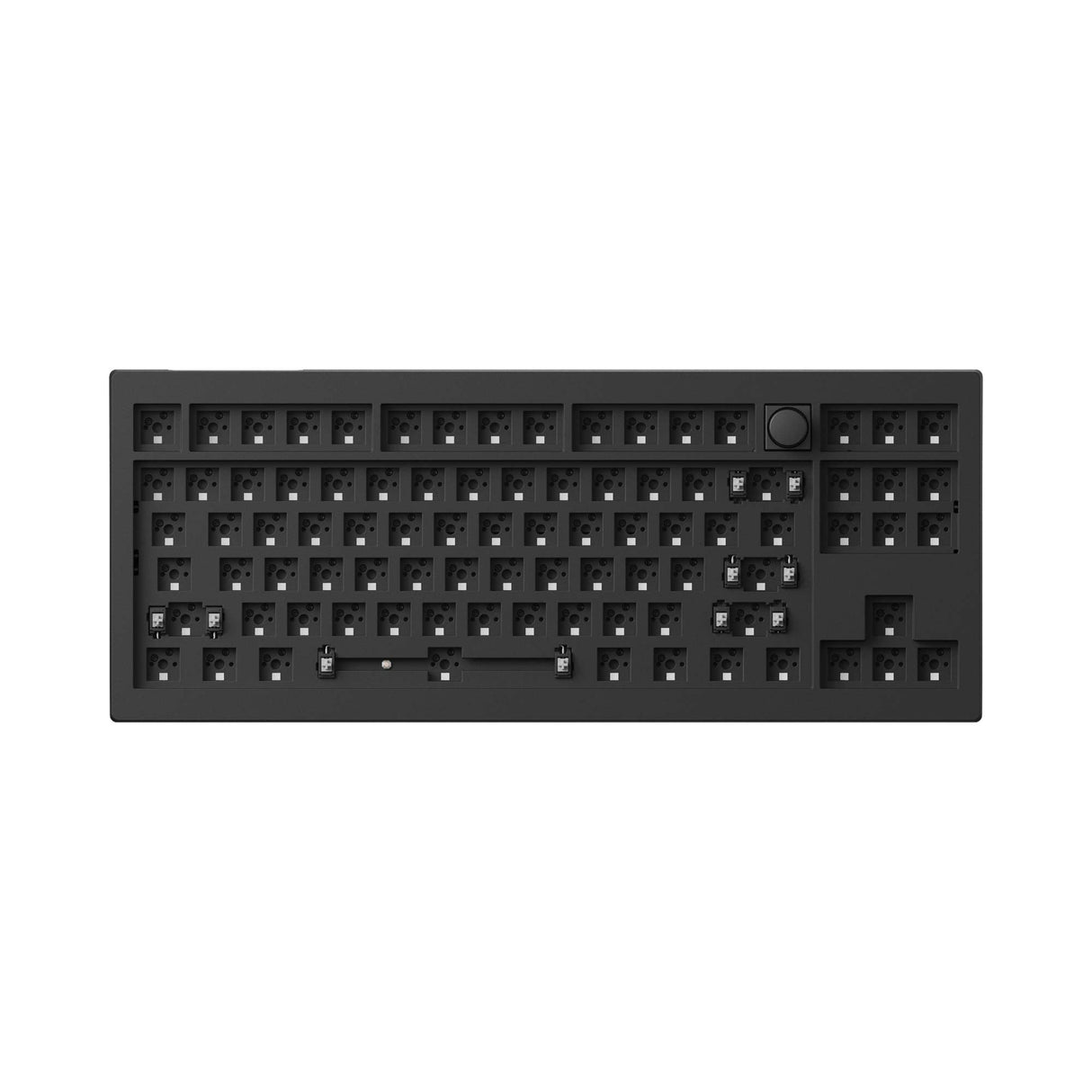

Keychron V3 Max QMK/VIA Wireless Custom Mechanical Keyboard 80% Layout Fully Assembled Knob for Mac Windows Barebone

Keychron V3 Max QMK/VIA Wireless Custom Mechanical Keyboard

Regular price Sale price $94.00
/
Tax included.

Type
Color
Switches
The fully assembled version includes:
  • ABS plastic housing
  • The keyboard PCB, screw-in stabs, and the PC plate
  • Double-shot OSA PBT keycaps (including Mac & Windows keycaps)
  • Gateron Jupiter switches

The barebone version does not include the keycaps and switches.
No discount codes can be used for V3 Max.

Please drop your email on "Notify Me When Available" if the product model is out of stock.

Keychron V3 Max 2.4G wireless QMK mechanical keyboard

Keychron V3 Max

The V3 Max is a QMK custom mechanical keyboard with 2.4 GHz wireless and Bluetooth 5.1 connection. It has a classic TKL layout and offers a gasket mount design, sound-absorbing foam, double-shot PBT keycaps, and more. The V3 Max is designed for a personalized experience and enhanced typing comfort.

Keychron V3 Max 2.4G wireless QMK mechanical keyboard
Features of Keychron V3 Max 2.4G wireless QMK mechanical keyboard
Customize Your V3 Max

Choose the keycaps, switches and more accessories for your V3 Max

Section
Drop element here

All-around customizable keyboard

To build a fully customizable keyboard, we designed every component to be easily assembled so you can customize and adjust any or every parts the way you want.

Structure of Keychron V3 Max 2.4G wireless QMK mechanical keyboard
Structure of Keychron V2 Max 2.4G wireless QMK mechanical keyboard
Section
Drop element here

2.4 GHz & Bluetooth Connection

Experience peak gaming performance on the fly with the 2.4 GHz wireless connection boasting a rapid 1000 Hz polling rate. For seamless multitasking across your computer, phone, and tablet, you can effortlessly connect the V3 Max via Bluetooth 5.1 to three devices.

Keychron V3 Max 2.4G wireless QMK mechanical keyboard

Dual Receivers

For a better 2.4 GHz wireless experience, the V3 Max comes with Type-C and Type-A receivers. Enjoy the quick plug-and-play time. Or, put them away in the keyboard magnetic storage slot at the top right corner.

Type-A-and-Type-C-receivers-for-the-V3-Max-wireless-mechanical-keyboard.jpg__PID:0eeb5747-5145-4fee-99ca-4721f668471a
magnetic-storage-slot-for-receivers-on-the-V3-Max-keyboard.jpg__PID:14beebbb-c73e-475a-9dcd-3dfa6893e0e4
Keychron V3 Max 2.4G wireless QMK mechanical keyboard

An Epic Core Inside The Keyboard

A powerful ARM architecture MCU equipped with 256K Flash will provide more flexibility for developers. The polling rate is 1000 Hz right out of the box, which makes the latency hardly noticeable even in competitive games.

OSA Profile Double-shot PBT Keycaps

These double-shot PBT keycaps have a similar height to the OEM profile and has an SA-like shape. We named it the OSA (OEM spherical angled) keycap. The PBT keycaps will provide excellent oil resistance, enhance the type feel, and prevent the legends from fading out.

Keychron V3 Max 2.4G wireless QMK mechanical keyboard
Section
Drop element here
Keychron V3 Max 2.4G wireless QMK mechanical keyboard

Switch Layouts Between macOS & Windows

Built with the Mac users’ experience in mind while still retaining compatibility for Windows devices, the Keychron V3 Max comes with a system toggle and an additional set of customized keycaps for both Windows and macOS systems. You can now save two different layouts on the keyboard, one for each system.

Gasket Mount Design

By adopting a gasket mount design along with a PC (Polycarbonate) plate, the V3 Max reduces acoustic resonance, delivering a softer and quieter typing experience with enhanced flexibility.

Keychron V3 Max 2.4G wireless QMK mechanical keyboard

Program V3 Max with QMK & VIA

With full QMK and VIA support, you can easily program and remap each key on the keyboard. The open-source firmware means endless possibilities for keyboard layouts, shortcuts, backlight effects, even the knob, and more.

QMK VIA screen capture of Keychron V3 Max

Get the V3 Max keymap working on VIA

Since the VIA code for the V3 Max is still awaiting approval from Github, it is not yet automatically recognized. Please download the appropriate keymap JSON file below, open VIA, turn on "Show Design tab" on "Settings" tab, and drag the JSON file into the “Design” tab on VIA to get the V3 Max keymap working on VIA.

Download V3 Max Knob ANSI (US) Keymap JSON File

Hot-swappable

The hot-swappable sockets are mounted on the PCB, so you can install or change the switches without soldering. The PCB supports both 3-pin and 5-pin MX mechanical switches.

Hot-swappable-feature-of-the-V3-Max-wireless-keyboard.jpg__PID:22b74cde-5fa7-4bb1-abed-3d54dd53576d

South-facing RGB LED Lights

The south-facing RGB LED is designed to better illuminate the keyboard backlight from the typist’s angle with the premium non-shine-through PBT keycaps installed. The south-facing RGB is also free from interference when the users install OEM or Cherry-profile alternative keycaps on the keyboard.

Gateron Jupiter Switch

Our exclusive Gateron Jupiter mechanical switch (for the Fully Assembled version only) comes with a 3-pin design, its pre-lubed with a reliable Gateron quality standard with up to 80 million keystrokes lifespan. While their unique LED diffuser design offers high RGB backlight transmittance and softer backlight effect.
The banana switch provides an early tactile bump at the top with a uniquely smooth experience like those Panda switches on the market.

Gateron Jupiter Switch Features
All New Screw In PCB Stabilizers of Keychron V3 Max Custom Mechanical Keyboard

Screw-In PCB Stabilizers

Even small part matters for your fingertip feel. We’ve integrated the PCB-mounted screw-in stabilizers for a smoother typing experience with less wobbliness on the big keys such as space bar, shift, enter, and delete. The Keychron V3 Max also supports third-party screw-in PCB stabilizers.

Looking for ISO Layout?

The V1 ISO collection comes with fully assembled keyboards with 🇬🇧UK, 🇩🇪German, 🇩🇰🇫🇮🇮🇸🇳🇴🇸🇪Nordic, 🇨🇭Swiss, 🇫🇷French, and 🇪🇸 Spanish layout.

Check The V1 ISO Layout Collection

What's in the box?

Package list of Keychron V3 Max Custom Mechanical Keyboard
Package list of Keychron V3 Max Custom Mechanical Keyboard

Specs

Width149 mm
Length367.8 mm
Front Height23.6 mm  (without keycaps)
Back Height32.5 mm (without keycaps)
Feet Height2 mm
Angle4° / 7° / 10°
Weight 696 ± 10 g (Fully Assembled Version)
Body MaterialABS Plastic
Plate MaterialPC
Keycaps (Fully Assembled Version)Double-shot PBT keycaps, not shine-through, OSA Profile (OEM height, SA shape)
SwitchesGateron Jupiter (Fully Assembled Version)
Hot-swappable Yes. Compatible with most of the 3 pin & 5 pin MX mechanical switches such as Gateron, Cherry MX, Kailh, etc.
StabilizerScrew-in PCB stabs
CableType-C cable + Type-A to Type-C adapter
MCUARM Cortex-M4 32-bit STM32F402 (256KB Flash)
Charging PortUSB Type-C
Operating Environment-10℃ to 50℃
Polling Rate1000 Hz (2.4 GHz and wired) / 90 Hz (Bluetooth mode)
Mount StyleGasket Mount Design
BacklightSouth-facing RGB LED
N-Key Rollover (NKRO) Yes for both wireless and wired modes
Compatible System Windows/macOS/Linux
Bluetooth Version 5.1
Bluetooth Device NameKeychron V3 Max
Battery4000 mAh Rechargeable li-polymer battery
Charging Time Around 5 hours
Wireless Working Time (Backlit off) Up to 225 hours (Lab test result may vary by actual use)
Wireless Working Time (RGB) Up to 100 hours (Lowest brightness)
Section
Drop element here
Keychron V3 Max User Guide

Learn more about the Keychron V3 Max such as the V3 Max shortcuts, assembling the V3 Max, factory reset, and more in the FAQ section.
