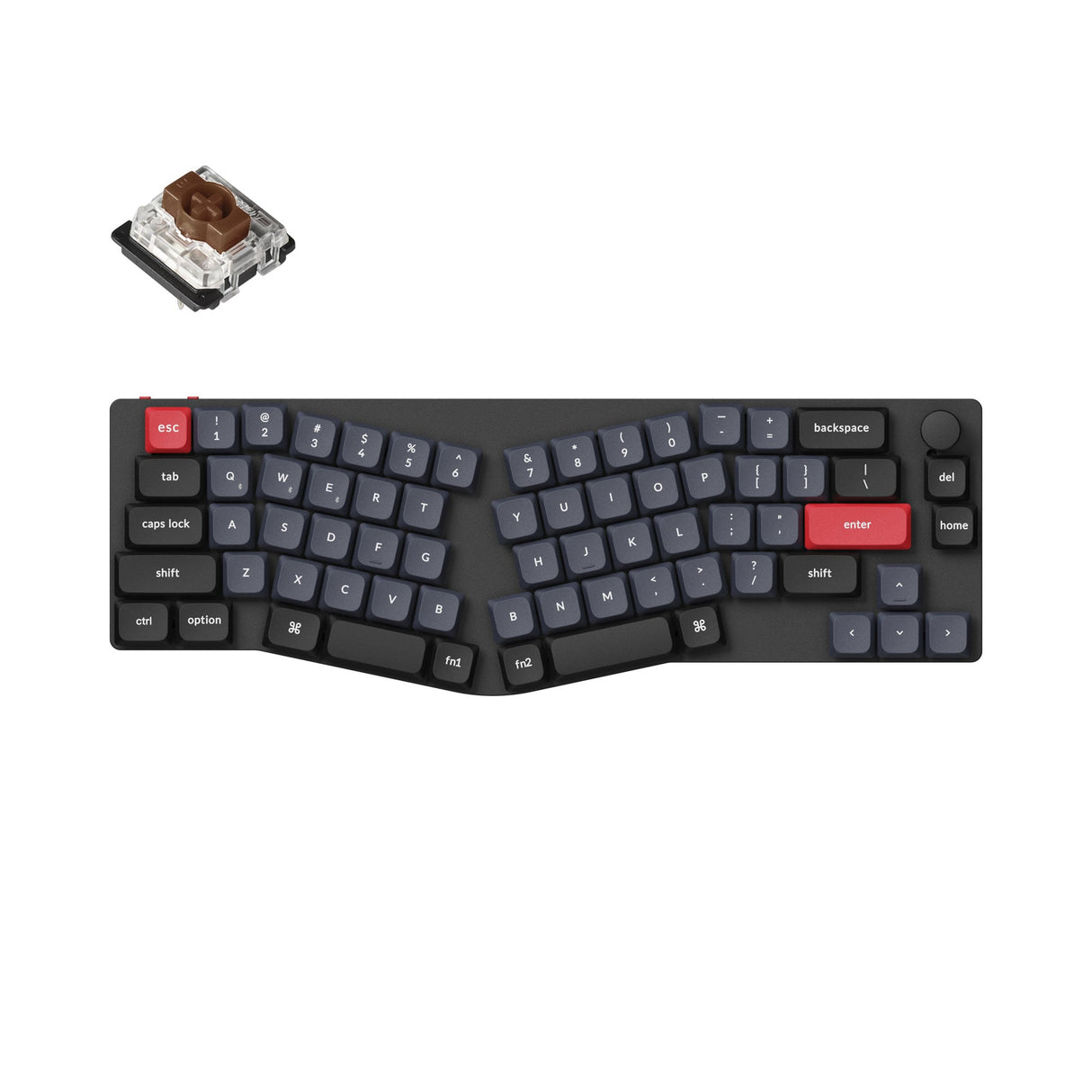

Keychron K11 Pro (Alice Layout) QMK/VIA Wireless Custom Mechanical Key

Keychron

K11 Pro

The Keychron K11 Pro is the first low-profile QMK/VIA wireless custom mechanical keyboard with a 65% Alice layout. Along with many more premium features, including double-shot PBT keycaps, a rotary encoder knob, and more to provide an ergonomic typing experience and maximize productivity!

More Accessories For Your K3 Pro

Wireless and Wired

An excellent solution for multitasking. Connects the K11 Pro with up to 3 devices wirelessly via its stable Broadcom Bluetooth 5.1 for seamless multitasking across your laptop, phone, and tablet. Switch among them swiftly, and it’s fully compatible with both Mac and Windows.

You can also enjoy a USB Type-C wired connection with 1000 Hz polling rate which is engineered for the competitive game.

Ultra-Slim

The innovative low-profile Gateron switch is 31% slimmer than conventional normal profile switches makes the aluminum body K11 Pro one of the thinnest wireless mechanical keyboards in the world. While still delivering a distinguished tactile response.

Programmable Knob

Designed to enhance your creative workflow, the aluminum rotary encoder allows you to easily customize your favorite keys and macros on the knob through the VIA software.

Program with QMK & VIA.

QMK/VIA means endless possibilities for a fluid workflow. Thanks to our engineering team, it's the first time in history that a wireless mechanical keyboard has these kinds of capabilities right out of the box.

Simply connect the K11 Pro to your device with a cable, drag and drop your favorite keys or macro commands to remap any key you want on any system (macOS, Windows, or Linux).

Check out the video above demonstrating how to remap the Backspace key to an Eject key with the VIA software, so you can get a shortcut to put your Mac to sleep (Command-Option-Eject), or even remap the fn key in a breeze. It’s never been so intuitive and flexible to personalize your own keymap.

An ultra-low-power ARM Cortex-M4 32-bit STM32L432 MCU which is powerful, and equipped with 128K Flash will provide more flexibility for developers.

Click here to use VIA

Get the keymap working on VIA

Since the VIA code for the K11 Pro is still awaiting approval from Github, it is not yet automatically recognized, so you will need to manually download and import the K11 Pro keymap.

Please download the keymap JSON file below. Connect your keyboard and device with the provided cable, and toggle the switch to cable mode. Open VIA, click on the "Show Design tab" on the "Settings" tab, and drag the JSON file into the “Design” tab on VIA to get the K11 Pro keymap working on VIA.

K11 Pro Keymap JSON Files

Download K11 Pro knob ANSI white backlight keymap JSON file

Download K11 Pro knob ANSI RGB keymap JSON file

Learn more about how to use VIA >

Suitable For All Devices

Offers a Mac layout while still being compatible with Windows, the K11 Pro is one of the few on the market that has the same multimedia and function key functions as Apple keyboards for Mac users, but with more tactile feedback.

You can even configure different keymaps for both Mac and Windows devices. While VIA software is compatible with macOS, Windows, and Linux. Includes keycaps for both macOS and Windows (and additional esc and enter keys) to allow you to switch between operating systems with ease.

An Epic Core Inside

A powerful ultra-low-power ARM architecture MCU equipped with 128K Flash will provide more flexibility for developers. The polling rate is 1000 Hz on wired mode right out of the box, which makes the latency hardly noticeable even in competitive games.

Hot-swappable (Optional)

We also provide a hot-swappable version for your choice, which means you can customize your typing experience without soldering, pop them in and it's done.

We all have our unique typing preferences, that’s why we are offering hot-swappable option on the K11 Pro, so you can easily hot-swap every low-profile Gateron mechanical switch in a few seconds to customize the typing experience without soldering.

*The K11 Pro is currently compatible with Gateron low-profile mechanical switches only, as QMK does NOT support low-profile optical switches.

Low-Profile Gateron Switch

The Gateron low-profile MX 2.0 Mechanical switch is designed to enhance reliability. Gateron's reputable switches are your best choice for a precise, smooth, and reliable fingertip feel whether you prefer linear (red), clicky (blue), or something in between (brown).

Low-Profile Double-shot PBT Keycaps

Designed for premium type feeling, the K11 Pro comes with our unique double-shot PBT keycaps that made of durable non-backlight shine through PBT material with excellent oil resistance for long-term use.

Redesigned Stabilizers

We’ve redesigned the stabilizers to make it stay on the level the same way as the switch while making sure it still delivers reliability and less wobble on the big keys like the space bar, left Shift, backspace, and Enter key.

RGB Backlights

Comes with more than 22 types of RGB backlight settings (as well as a static white backlight option), and 14 types of backlight settings on the White Backlight version. You can further fine-tune the RGB hue, saturation, brightness, effect speed with ease.

Ergonomic Support

Three levels of adjustable typing angle aim to provide long-lasting ergonomic wrist support.

What's in the box?

Frequently bought together (Add-on)

ANY KEYBOARD + ADD-ON
Pay shipping fee for keyboard only. Free shipping for the add-on (Excluding the Carrying Case and Mouse). Terms here.

Select the matching variant for your product.

SPECIFICATION

Number of Keys: 68 (65%)
Switches: Gateron low-profile mechanical
Switch Face: North-facing
Number of Multimedia Keys: 12
Frame Material: ABS+Aluminum frame
Keycap Material: Low-profile double-shot PBT
Layout: ANSI
Polling Rate (Wired Mode): 1000Hz
Polling Rate (Wireless Mode): 90Hz
N-Key Rollover (NKRO): Yes for both wireless and wired modes

*The K11 Pro is currently compatible with Gateron low-profile mechanical switches only, as QMK does NOT support low-profile optical switches.

CONNECTIVITY AND POWER

Backlit: 22 types of RGB backlight options plus endless possibilities
Battery: 2000 mAh rechargeable li-polymer battery
BT Working Time (Backlit off): Up to 154 hours (Lab test result may vary by actual use)
BT Working Time (RGB): Up to 77 hours (Lowest brightness)
Connection: Bluetooth and Type-C cable
Bluetooth version: 5.1
Bluetooth Device Name: Keychron K11 Pro
Compatible System: macOS/Windows/Linux

PHYSICAL UNIT

Dimension: 346 x 115 mm (13.62 x 4.53")
Weight: 510 g / 1.12 lbs
Height without keycap (front): 10.6 mm (0.42")
Height without keycap (rear): 15.6 mm (0.61")
Height incl. keycap (front): 17 mm (0.7")
Height incl. keycap (rear): 29 mm (1.14")
Typing Angle: 3.33º, 4.70º and 7.54º
MCU: Ultra-low-power ARM Cortex-M4 32-bit STM32L432 (128KB Flash)
Operating Environment: -10 to 50℃

Keychron K11 Pro User Guide

Learn more about the Keychron K11 Pro such as the shortcuts, VIA tutorial, factory reset, and more in the FAQ section.

Perfect! (except for the space bar)

What's perfect:
This is just what I wanted and I'm super happy with it. I really feel like I made the right choice buying this particular deck. The low profile keys are super comfortable for typing and I now see that all I ever wanted was a shorter travel distance. To really spice this keyboard up, I ordered some Gateron Banana switches and they're perfect. The combination of tactile switches on a low profile is a great combination. Each keypress really pops.

This is my first time with a 65% keyboard and I was so afraid of not having enough keys). But it totally works because I can have everything where I want it with the VIA software. Actually it's my new preference having a lot more compact format for my regular typing keys and just making a layer below it for any media control keys or macros.

A really important add-on for me was an extra set of keycaps (I got the Keychron low profile so that I can mix and match with the key caps that come with the keyboard. With these, I could not only move the keys around in VIA, but also have all the key caps to match. For example, I wanted to change the del and home buttons to page up and page down. Those didn't come with the stock keyboard, but with an alternate set of keycaps, they can actually say the right thing. Also, since every low profile keycap is the same height, I can get creative with key placement. I love this kind of flexibility.

What's not perfect:
My main complaint is the space bar (for me it's the right space bar). Having a key right next to the space bar is really awkward. I think they got it right on the K15, Q10, Q14. Just the K11 and Q8 have this messy Fn2 key. For me personally, I will only use the Fn2 key to access the function row like once a month. It doesn't need this incredibly central position. I keep mishitting it and it's made my thumb curl in even more to avoid hitting it. It honestly feels awful. I feel kine of like this keyboard is a version 0 with this bad space bar and now I'm going to have to buy the version 1 when it comes out with the user tested space bar. Honestly, I don't use Fn1 that often either. Just move them both to the outside of the space bars and move the space bars more central.

What I'd really like for this keyboard and what I'd pay good money for would be a replacement space bar(s) where I can take out the Fn1 and Fn2 switches and the space bars extend over the empty switch spaces. If someone would make that, please hit me up and I'll buy it in a minute. I'll figure out somewhere else to put my Fn keys, but I can't keep misstriking this badly placed Fn2.

Finally, a barebones version would have been nice. I ended up buying a separate set of switches, separate set of keycaps, and even a separate knob. I would have gotten those things anyway, but it would have been nice to save $20 and not have a pile of unused red switches and key caps in my closet.
